03W JMA:TD 高低層分離 發展路坎坷

簽到天數: 85 天

[LV.6]常住居民II

陳約禮@FB|2016-7-17 10:47 | 顯示全部樓層

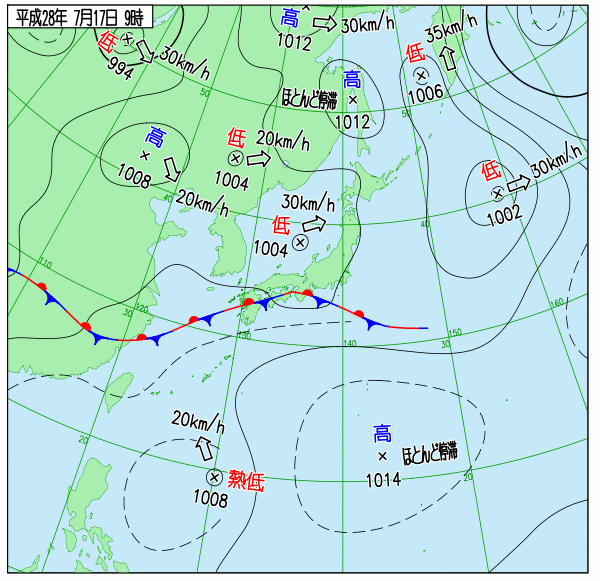

JMA於17日00Z再升為TD
TROPICAL DEPRESSION 1008 HPA
AT 19.5N 130.1E SEA EAST OF PHILIPPINES MOVING NORTHNORTHWEST 10
KNOTS.

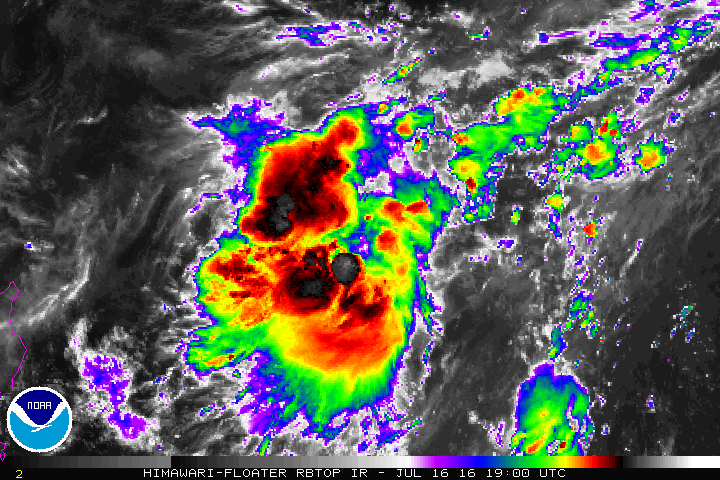

昨天入夜後對流改善不少
rbtop-animated (1).gif

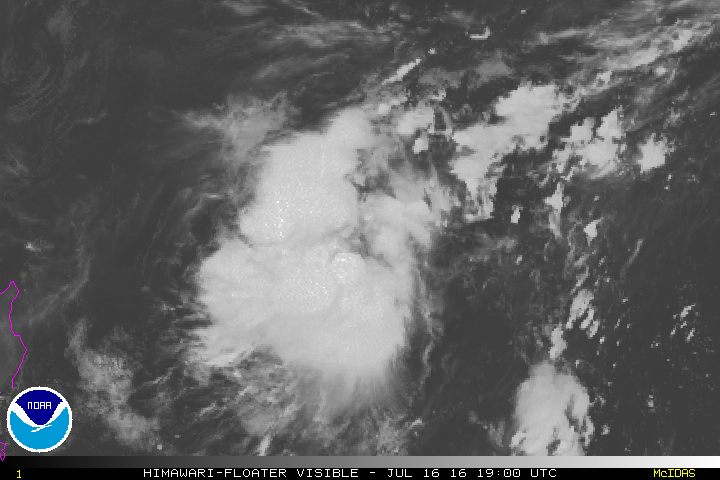

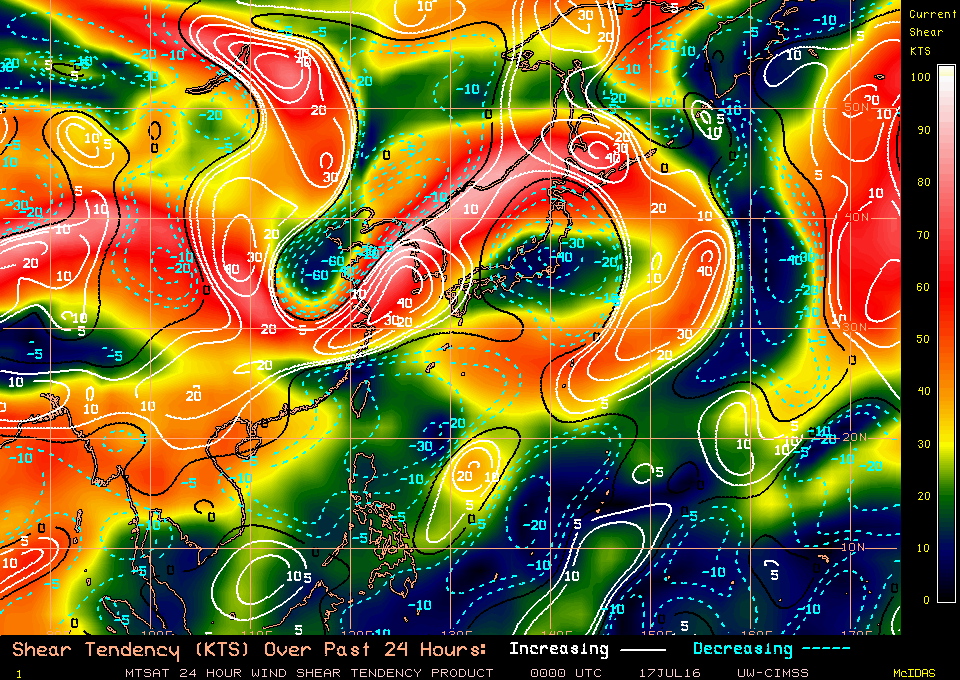

可惜受東側較強風切影響,深層對流不斷被颳去西側,讓對流始終無法完全覆蓋低層環流
vis-animated (1).gif






點評

強聖嬰後一年的大氣環境對西太颱風相當不友善~~  發表於 2016-7-17 23:47
菲東簡直一片死寂  發表於 2016-7-17 12:01
回復

使用道具 舉報

簽到天數: 3291 天

[LV.Master]伴壇終老

t02436|2016-7-17 12:59 | 顯示全部樓層

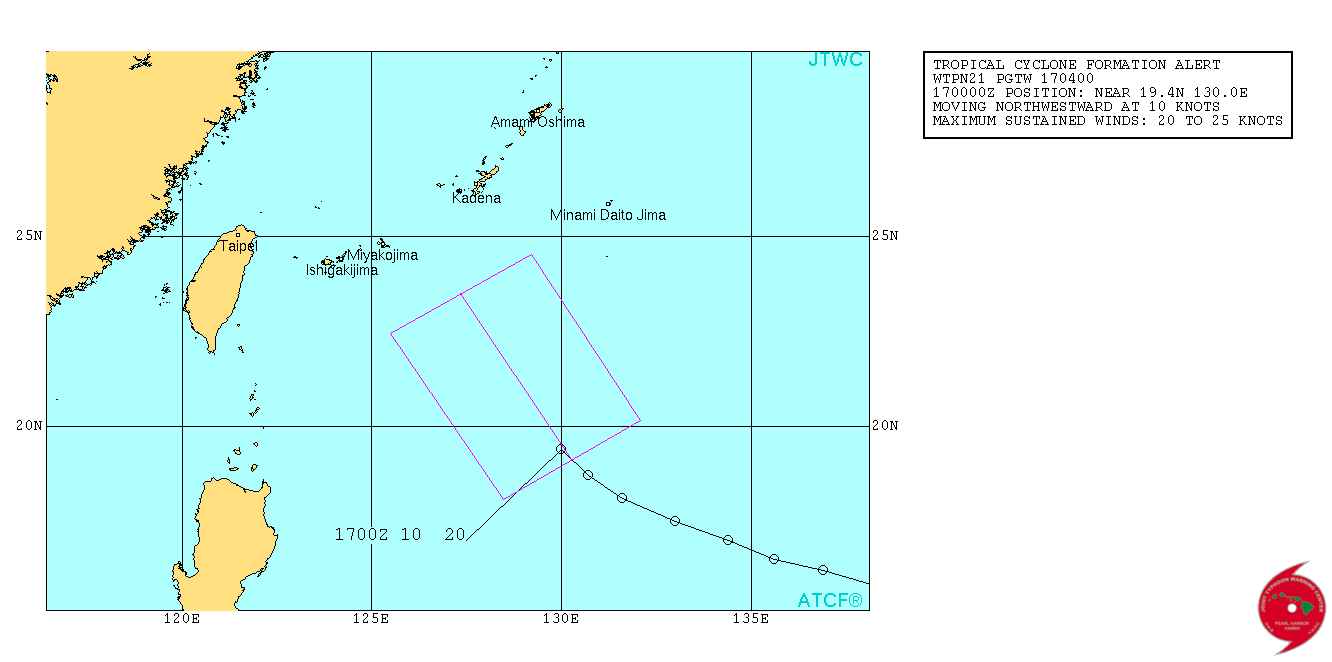

JTWC發佈TCFA
WTPN21 PGTW 170400
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/TROPICAL CYCLONE FORMATION ALERT//
RMKS/
1. FORMATION OF A SIGNIFICANT TROPICAL CYCLONE IS POSSIBLE WITHIN
120 NM EITHER SIDE OF A LINE FROM 19.1N 130.3E TO 23.5N 127.3E
WITHIN THE NEXT 12 TO 24 HOURS. AVAILABLE DATA DOES NOT JUSTIFY
ISSUANCE OF NUMBERED TROPICAL CYCLONE WARNINGS AT THIS TIME.
WINDS IN THE AREA ARE ESTIMATED TO BE 20 TO 25 KNOTS. METSAT
IMAGERY AT 170000Z INDICATES THAT A CIRCULATION CENTER IS LOCATED
NEAR 19.4N 130.0E. THE SYSTEM IS MOVING NORTHWESTWARD AT 10
KNOTS.

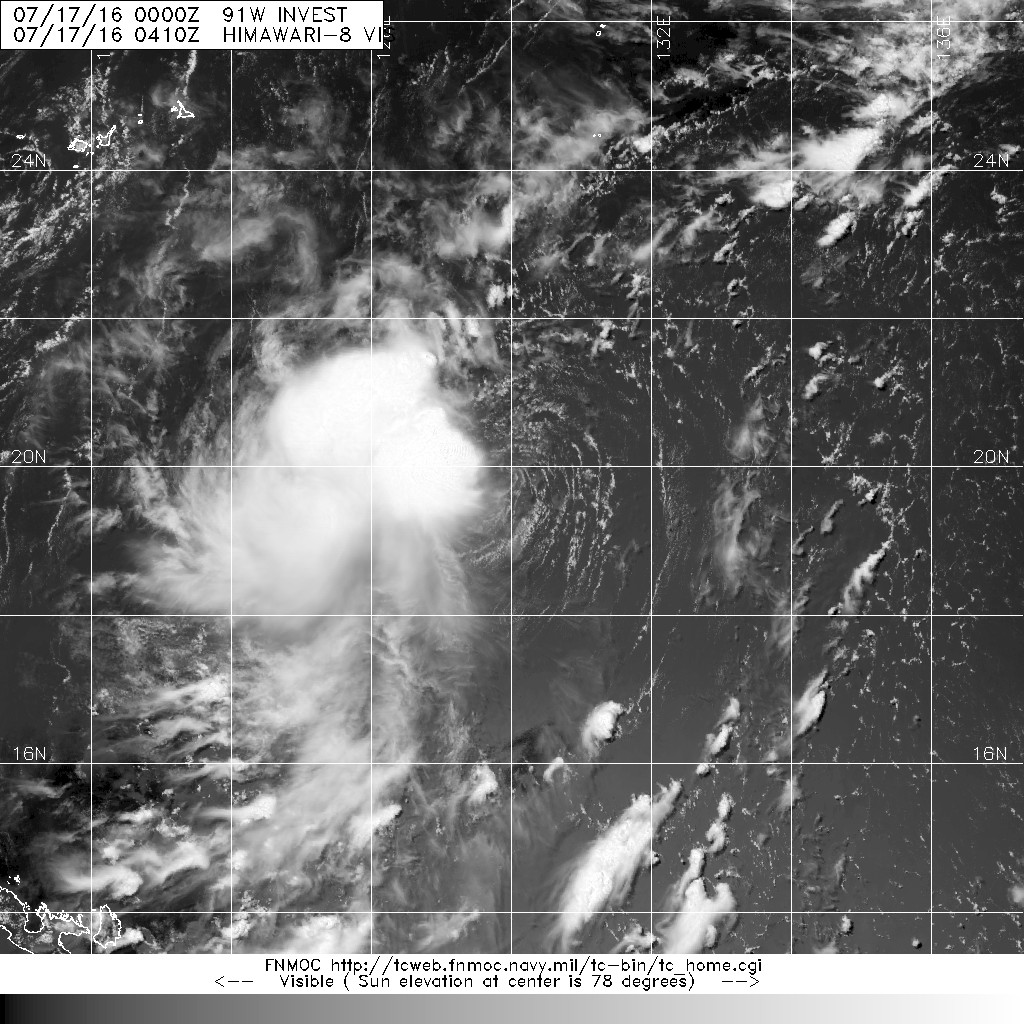

2. REMARKS: THE AREA OF CONVECTION PREVIOUSLY LOCATED NEAR 18.3N
131.8E IS NOW LOCATED NEAR 19.4N 130.0E, APPROXIMATELY 435 NM SOUTH-
SOUTHEAST OF KADENA AIR BASE, OKINAWA. RECENT ANIMATED MULTISPECTRAL
SATELLITE IMAGERY SHOWS DEEP CONVECTION PERSISTING OVER THE WESTERN
PORTION OF A CONSOLIDATING, PARTIALLY-EXPOSED LOW LEVEL CIRCULATION
CENTER (LLCC). A 170030Z METOP-B ASCAT IMAGE INDICATES 20 KNOT WINDS
ON THE SOUTHERN AND EASTERN PERIPHERIES OF THE CIRCULATION WRAPPING
INTO THE CENTER. THE UPPER-LEVEL ENVIRONMENT IS MARGINAL, WITH GOOD
WESTWARD DIFFLUENCE AND MODERATE EASTERLY VERTICAL WIND SHEAR THAT
IS EXPECTED TO INCREASE OVER THE NEXT DAY OR TWO. GIVEN INCREASING
ORGANIZATION DURING THE PAST 12 HOURS, IT IS LIKELY THE DISTURBANCE
WILL REACH THE MINIMUM WARNING THRESHOLD INTENSITY OF 25 KNOTS AND
REMAIN A WEAK TROPICAL DEPRESSION FOR A SHORT PERIOD BEFORE
INCREASING VERTICAL SHEAR ULTIMATELY RESULTS IN DISSIPATION. MAXIMUM
SUSTAINED SURFACE WINDS ARE ESTIMATED AT 20 TO 25 KNOTS. MINIMUM SEA
LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1007 MB. BASED ON THE
CONSOLIDATING LOW LEVEL SIGNATURE AND PERSISTENT CONVECTIVE
SIGNATURE, THE POTENTIAL FOR FORMATION FOR A SIGNIFICANT TROPICAL
CYCLONE WITHIN THE NEXT 24 HOURS IS HIGH.
3. THIS ALERT WILL BE REISSUED, UPGRADED TO WARNING OR CANCELLED BY
180400Z.//
NNNN



點評

高低層似乎有分離  發表於 2016-7-17 17:53
回復

使用道具 舉報

簽到天數: 1989 天

[LV.Master]伴壇終老

ben811018|2016-7-17 17:51 | 顯示全部樓層

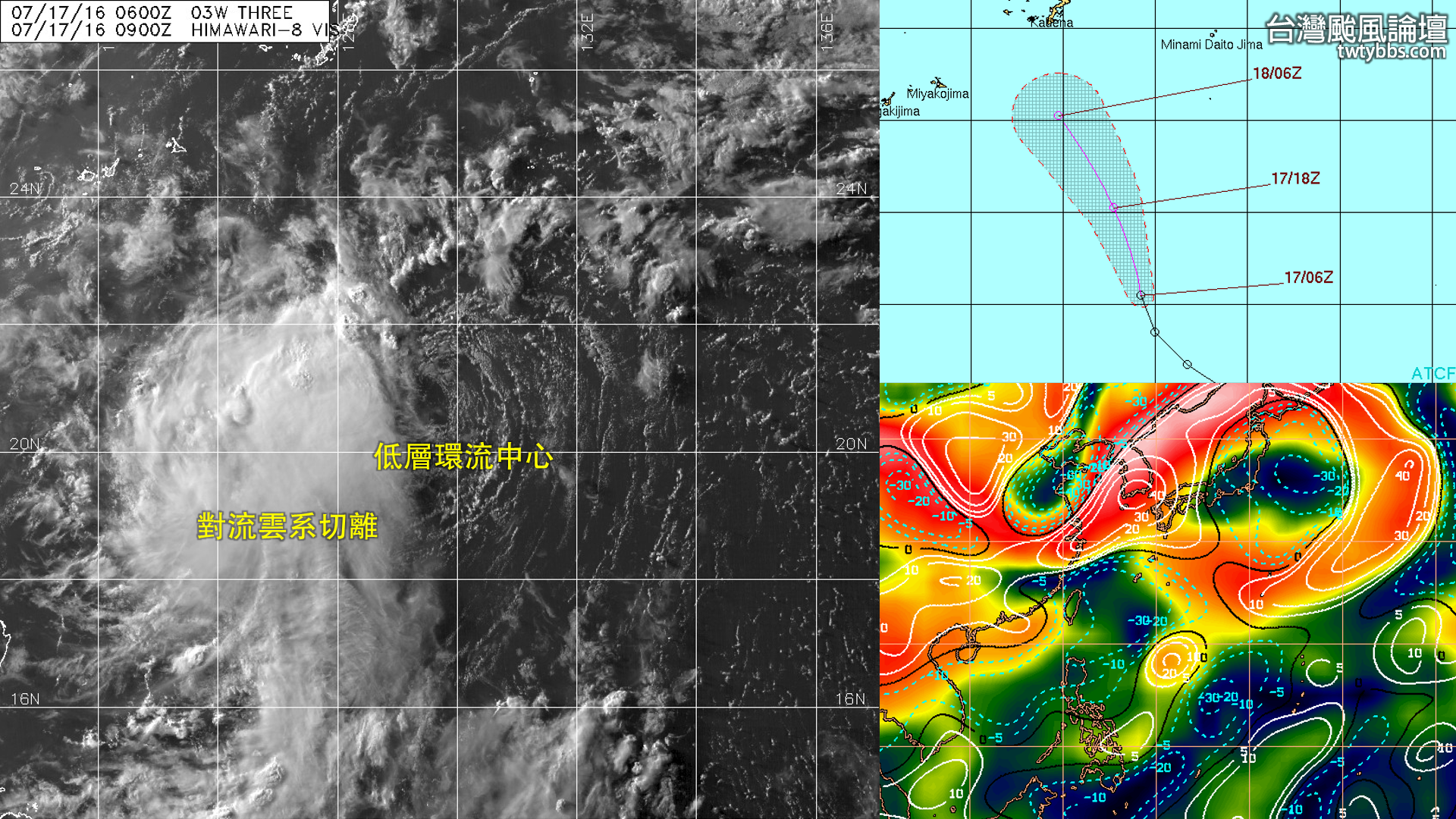

螢幕擷取畫面 (425).png

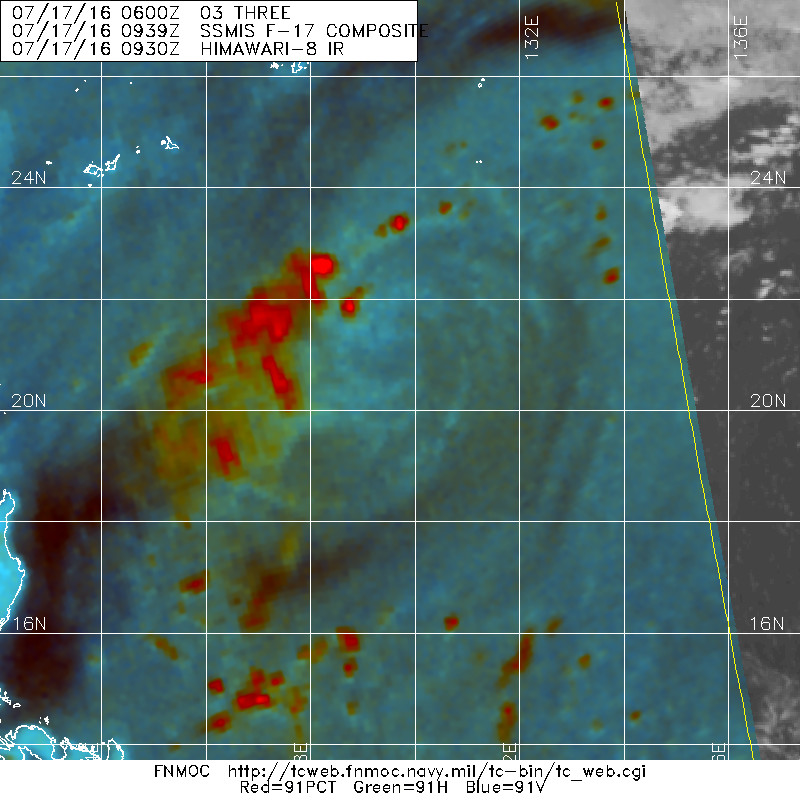

聯合颱風警報中心(美軍JTWC)將熱帶性低氣壓升格為03W,下午兩點位於日本琉球南方海域,沿著高壓邊緣朝西北進行,由於所處大氣環境垂直風切偏強,高低層分離相當嚴重,對流雲系多集中在中心西側,也因此未來要有更進一步發展的機會並不高。

以目前資料研判,03W將朝日本那霸以南近海前進,對台灣不會有直接影響,但其外圍水氣會讓台灣附近午後對流雲系發展更旺盛,雨勢更明顯,東半部也有零星降雨。

回復

使用道具 舉報

簽到天數: 1989 天

[LV.Master]伴壇終老

ben811018|2016-7-17 20:59 | 顯示全部樓層

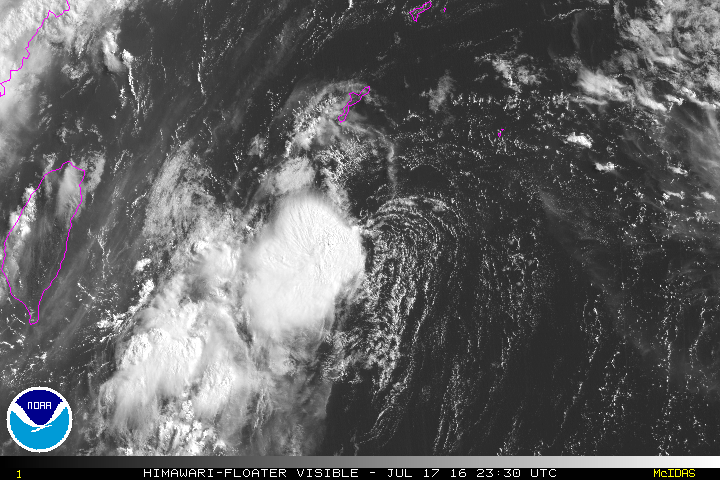

低層很糟,也沒啥深層對流
老J都編到03W了,小J還在1601 XD

點評

老J只要有風場達標+完整LLCC就會有機會升格  發表於 2016-7-17 22:55
回復

使用道具 舉報

簽到天數: 1763 天

[LV.Master]伴壇終老

blackcat|2016-7-17 23:18 | 顯示全部樓層

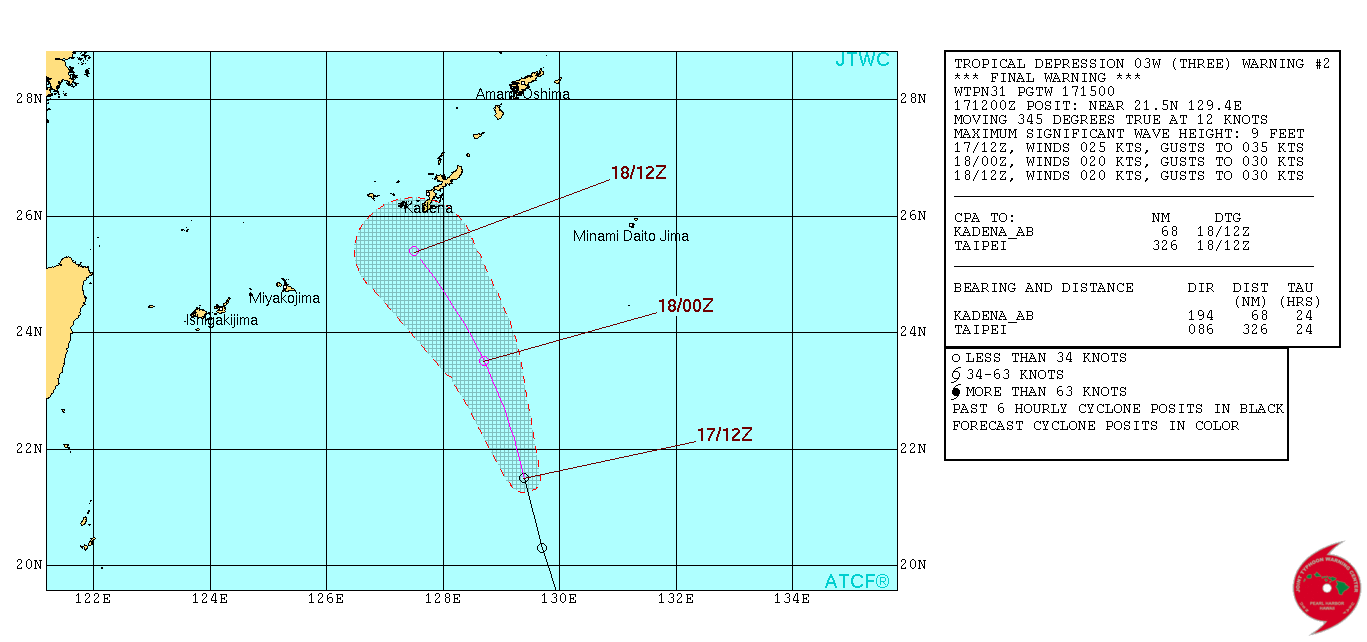

FW
2報結束這回合

回復

使用道具 舉報

簽到天數: 1989 天

[LV.Master]伴壇終老

ben811018|2016-7-18 15:24 | 顯示全部樓層

【午後對流全面爆發 熱帶低壓裸奔北上】
熱帶性低氣壓03W持續北上,中心受到強垂直風切影響,高低層分離相當嚴重,可以發現有個旋轉中心快速北上,而對流受到高層東北風影響,無法順利捲入中心,也因此暖心結構無法更有效建立,難以有進一步發展。

另方面,太平洋高氣壓減弱加上熱帶低壓外圍水氣影響,台灣上空午後對流雲系全面爆發,許多地區皆出現瞬間強降雨。


回復
